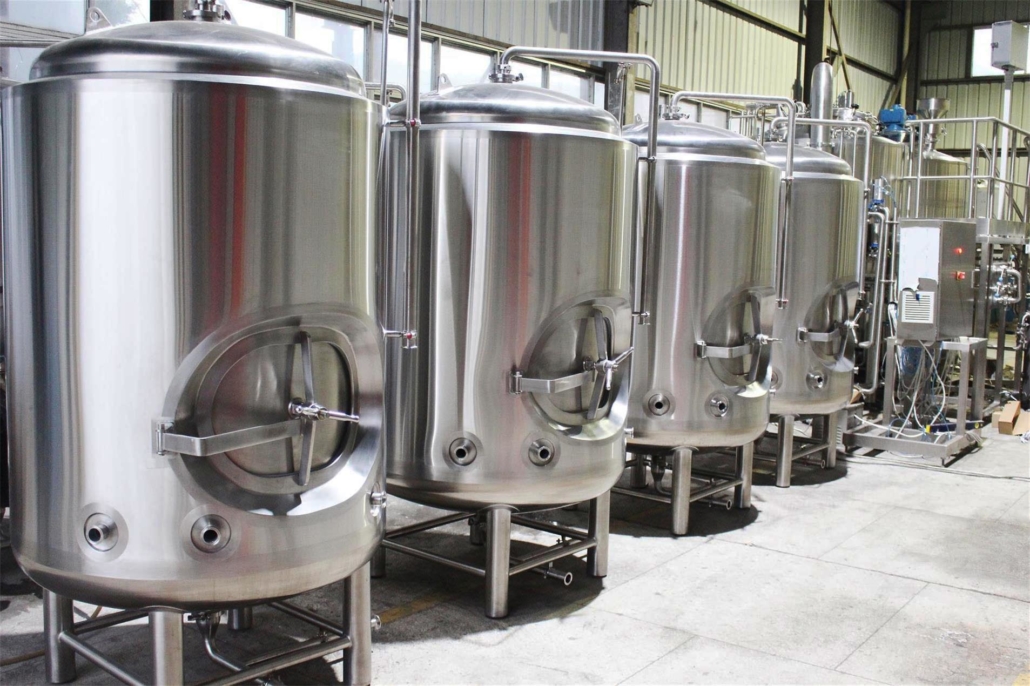

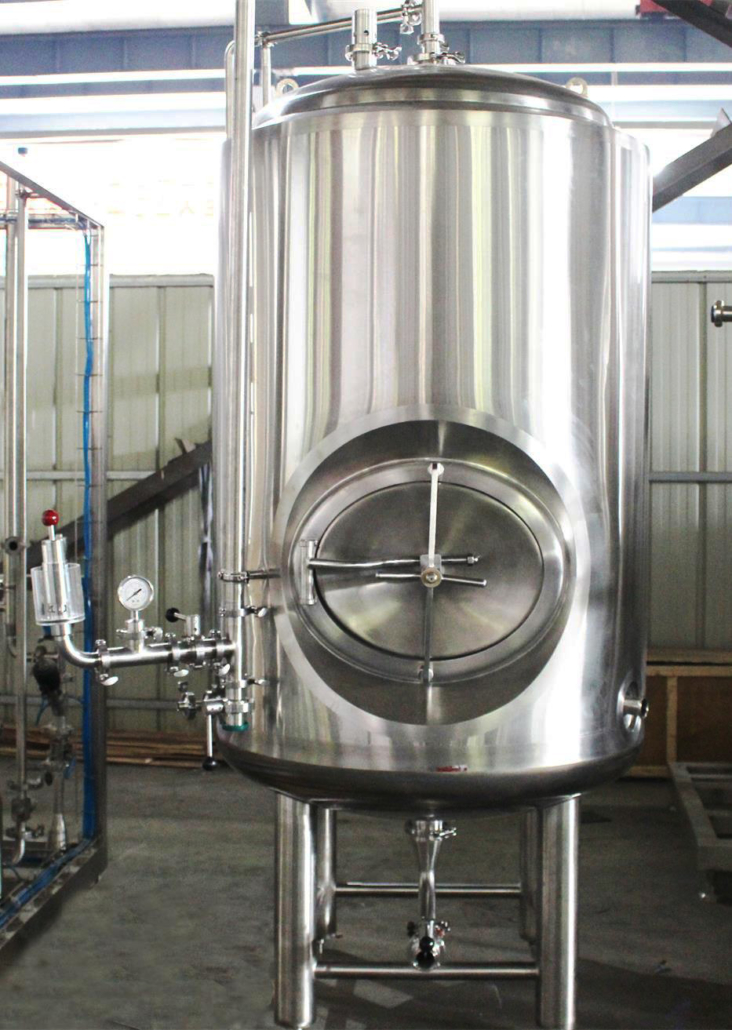

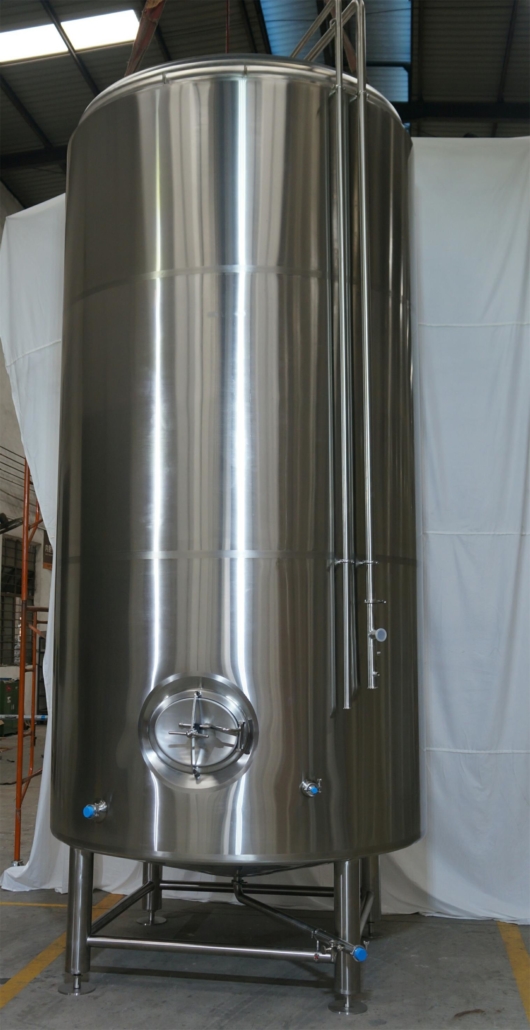

BRITE BEER TANK

Brite Beer Tank is also known as Beer Conditioning Tank and Beer Serving Tank, which is used for beers storage and conditioning. JSJ brite tank welded with cooling jackets, bright tank completed with a top dished head, fabricated going over to the body in rounded off shape.

We can provide CE, PED and AS1210 certifications for brite beer tank to meet government requirements in different countries.

Specification

• Capacity available from 1/2 bbl to 200bbl

• SS 304 construction

• Top dished head with pressure vacuum relief valve

• Top manway or side shadowless manhole

• Sanitary rotary spray ball

• PU foam insulated

• Cooling jacket on the cylinder or single wall serving tank

• Optional jacket for hot water heating in cold area

• Side CIP arm assembly with bung valve/spunding valve and pressure gauge

• Sanitary thermowell

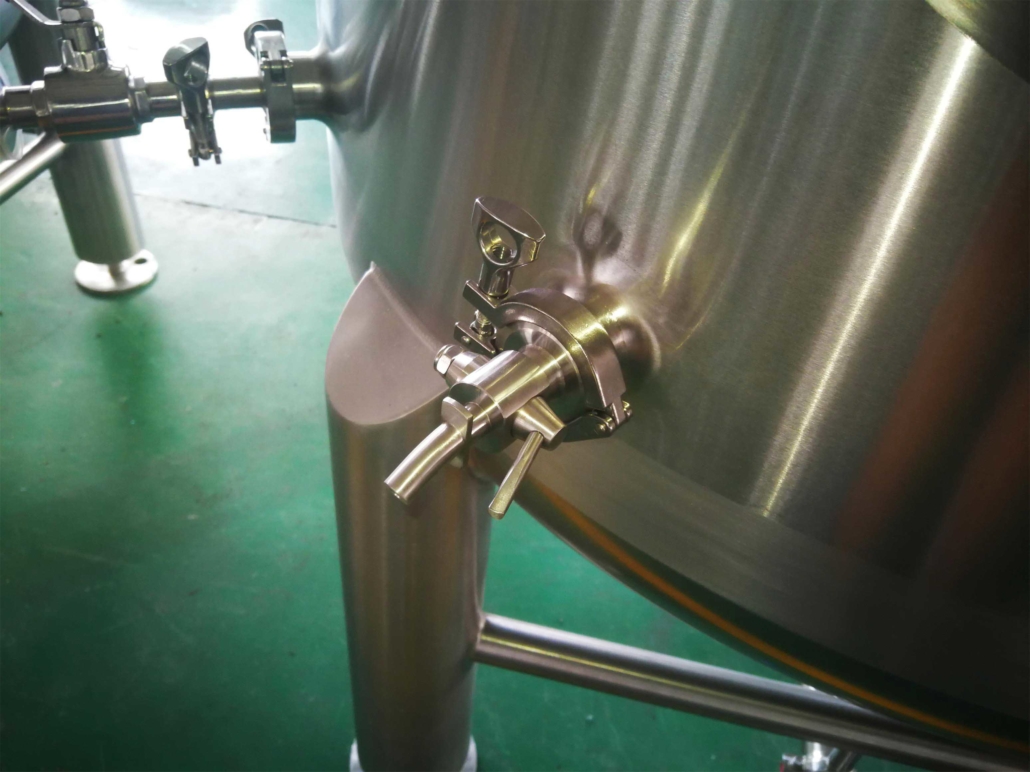

• Sample valves

• Bottom discharge

• Four legs with adjustable feet, optional for anti-seismic

• Internal shell: 2B, External Shell polished Ra ＜0.4um

• Available pressure tank certificates of CE, PED for 2014/68/EU, AS1210 (Australia Standard)
